Specification:

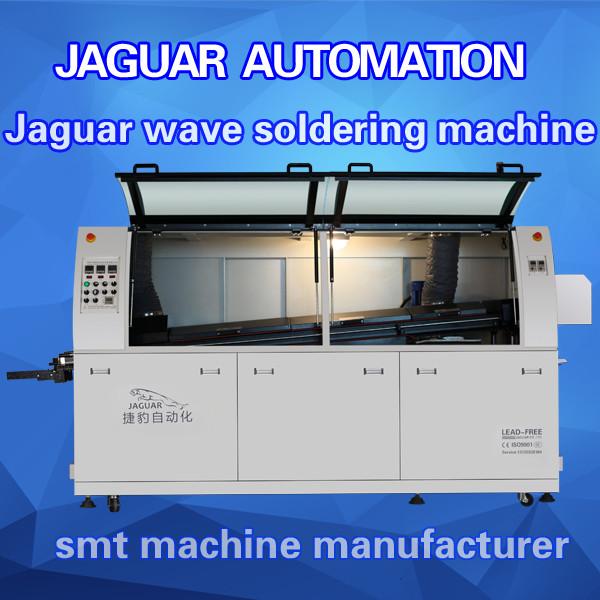

| Model No. | JAGUAR N300 |
| Number of heating zones | 2 |
| Length of heating zones | 1200mm |
| Body size | 2800(L)*1250(W)*1560(H) |
| Outside dimension | 3600(L)*1250(W)*1560(H) |
| Weight | 1000KG |
| Total/running power | 19KW/5-7KW |
| Air supply | 0.5MPa |
| Preheating method | IR(standard)/Hot air |
| Preheating power | 220V 6KW |

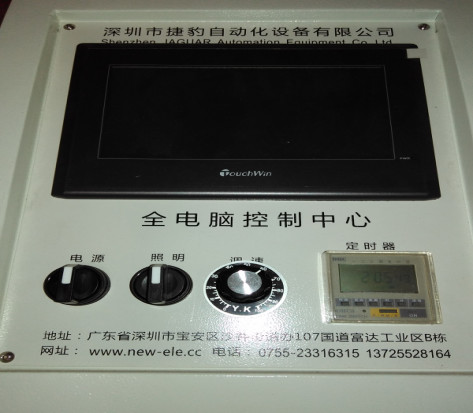

| Control method | PC +PLC/press keys/Touch screen |
| Range of temp. control | Room temperature---300ºC |
| Preheating time | About 10-15mins for setting 150ºC |
| Solder type | Lead-free / Sn-Pb |
| Solder pot capacity | 280KG |
| Solder pot temperature | 300ºC |
| Solder power | 380V 9KW |
| Solder temp. control method | PID&SSR |
| Wave crest drive power | 1KW 220V |
| Warm-up time of solder | About 120mins for setting 250ºC |
| PCB width | 50-300mm |
| Convey speed | 0-1800mm/min |
| Convey direction | L→R (R→L optional) |
| Convey angle | 4-7 º |
| Flux pressure/capacity | 3-5 bar/5.2L |
INTRODUCTION:
1.Efficient, energy-saving, lead-free, environment-friendly, safe
and brand-new design, simple operation, convenient maintenance.
2.Automatic power system, frequency converter control, automatic
board input system.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles
and rodless pneumatic cylinders and PLC control, accurate and
reliable.
3.Preheating system uses three independent temperature control so
that ensure the excellent heat preservation, temperature
uniformity, temperature difference no more than ±2ºC.
4.Special alloy transportation chain claws, non-stick tin and
ensures the quality of welding PCB board.
5.Tin stove adopts imported high frequency conversion motor
independent control, stable performance.
6.Lead-free solder furnace with independent design, environmental
protection and safety,
7.easy to clean.
8.Tin stove preheating furnace uses high-speed PID and 2
independent infrared heating (IR heating) control.
9.Time can be controlled, we can preset switch functions, tin stove
can heat within 90 minutes.
10.With black box memory function, the machine can always store the
production management records, improve work efficiency.
11.Automatic claw cleaning function ensure the cleanliness of
claws.
12.Reasonable design and sensitive fault security alarm system
ensure the stable performance and operators’ safety.
