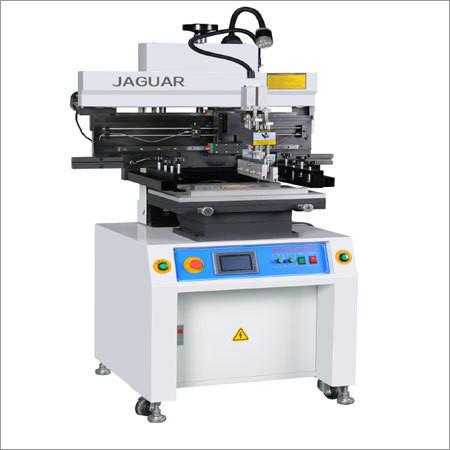

Feature:
1.Using precision guide rail and the import motor to drive the
blade seat conversion, printing, and high accuracy.
2.Printing scraper can rotate 45 degrees fixed up, easy printing
stencil and squeegee cleaning and replacement.
3.Block can be adjusted before and after the blade, to choose the
right printing position. 4.Combined with a fixed groove printing
platen and PIN, easy installation and adjustment, for single,
double sided printing.
5.School Edition way to move a steel mesh, combined with printed
(PCB), X, Y, Z. Convenient fine adjustment.
6.Can be set to one-way and two-way, a variety of printing methods.
7.With the automatic counting function to facilitate the production
of output statistics. 8.Adjustable blade angle, steel blade, rubber
scraper are suitable.
9.Touch screen with a screen saver function, the time can be
adjusted to protect the touch-screen life. 10.Printing speed
display, can be adjusted.
Web: www.jaguar-ele.net
SHENZHEN JAGUAR AUTOMATION EQUIPMENT CO., LTD
Building B, Fuda Industrial Zone, National Highway 107, Shajing
Town, Bao'an District, Shenzhen, China
Specifications:
| Model | | | JAGUAR S1200 |
| Dimensions | | 2000×720×1650mm |
| Platform size | | | 300×1250mm |
| PCB size | | | 250×1200mm |
| Printing speed | | | 0-8000mm/min |
| PCB thickness | | | 0.2-2.0mm |
| PCB fine tuning range | | | Front/side±10mm |
| Power supply | | 1PAC220V 50/60HZ |
| Platform height | | | 850±20mm |
| Repeating precision | | | ±0.01mm |
| Printing Accuracy | | | ±0.02mm |
| Positioning mode | | Outside/Reference hole |
| Weight | | | Approx.380Kg |
| Parts List: | | | |
| | Model | Semi-auto screen printer s1200 | |
| | | | |
| | PLC S7-200 | SIEMENS Germany | |
| | | | | |
| | Proximity switch (left and right) | OMRON | Japan | |
| | TL-W5MC1 | | | |
| | Proximity switch (top and | AirTAC | Taiwan | |
| | bottom) D-AIS4C | | | |
| | Magnetic Value 201-10 | AirTAC | Taiwan | |
| | | | | |
| | cylinder | Festo | Germany | |
| | | | | |
| | Power supply | OMRON | Japan | |
| | | | |
| | Touch Screen | Samkoon | |
| | | | | |
| | Linder side | Hiwin | Taiwan | |
| | | | | |
| | Relay | OMRON | Japan | |
| | | | | | |
