Lead free N450 wave solder/wave soldering
INTRODUCTION:
1.Efficient, energy-saving, lead-free, environment-friendly, safe
and brand-new design, simple
2.Automatic power system, frequency converter control, automatic
board input system.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles
and rodless pneumatic cylinders and PLC control, accurate and
reliable.
4.Preheating system uses three independent temperature control so
that ensure the excellent heat preservation, temperature
uniformity, temperature difference no more than
2.±2ºC.
5.Special alloy transportation chain claws, non-stick tin and
ensures the quality of welding
3.PCB board.
6.Tin stove adopts imported high frequency conversion motor
independent control, stable performance.
7.Lead-free solder furnace with independent design, environmental
protection and safety,e asy to clean.
8.Tin stove preheating furnace uses high-speed PID and 2
independent infrared heating (IR
4.heating) control.
9.Time can be controlled, we can preset switch functions, tin stove
can heat within 90 minutes.
10.With black box memory function, the machine can always store the
production management records, improve work efficiency.
11.Automatic claw cleaning function ensure the cleanliness of
claws.
12.Reasonable design and sensitive fault security alarm system
ensure the stable performance and operators’ safety.
13.Nitrogen Structure(optional): High accuracy Oxygen analyzer,
Nitrogen consumption of 16m3/hr based on 300-500ppm.
Specification:
| Model No. | JAGUAR N450 |
| Number of heating zones | 3 |
| Length of heating zones | 1800mm |
| Total/running power | 30KW/8-11KW |
| Air supply | 0.5MPa |
| Preheating method | Micro hot air |
| Preheating power | 220V 8KW |
| Control method | PC +PLC |
| Range of temp. control | Room temperature---300ºC |
| Preheating time | About 10-15mins for setting 150ºC |
| Solder type | Lead-free / Sn-Pb |
| Solder pot capacity | 400KG |
| Solder pot temperature | 300ºC |
| Solder pot material | Pure titanium(standard) |
| Heating emitter power | 380V 8KW |
| Solder temp. control method | PID+SSR |
| Wave crest drive power | 1KW 220V |
| Wave crest height Control | Frequency converter |
| Warm-up time of solder | About 180mins for setting 250ºC |
| PCB width | 60-450mm |
| Component clearance | Top 120mm(option 160mm) Bottom15mm |
| Convey speed | 0-2000mm/min |
| Convey height | 750+/-20mm |
| Convey direction | L→R (R→L optional) |
| Convey angle | 4-7 º |
| Convey width adjustment | Manual |
| UPS | Option |
| Nitrogen structure | Option |
| Flux pressure/capacity | 3-5 bar/6.5L |
| Weight | 1100KG |
| Power Requirement | 3P5W,380/220V 50Hz 63A |
| Dimensions | 4300(L)*1400(W)*1560(H) |
Workshop and Packing Photoes:

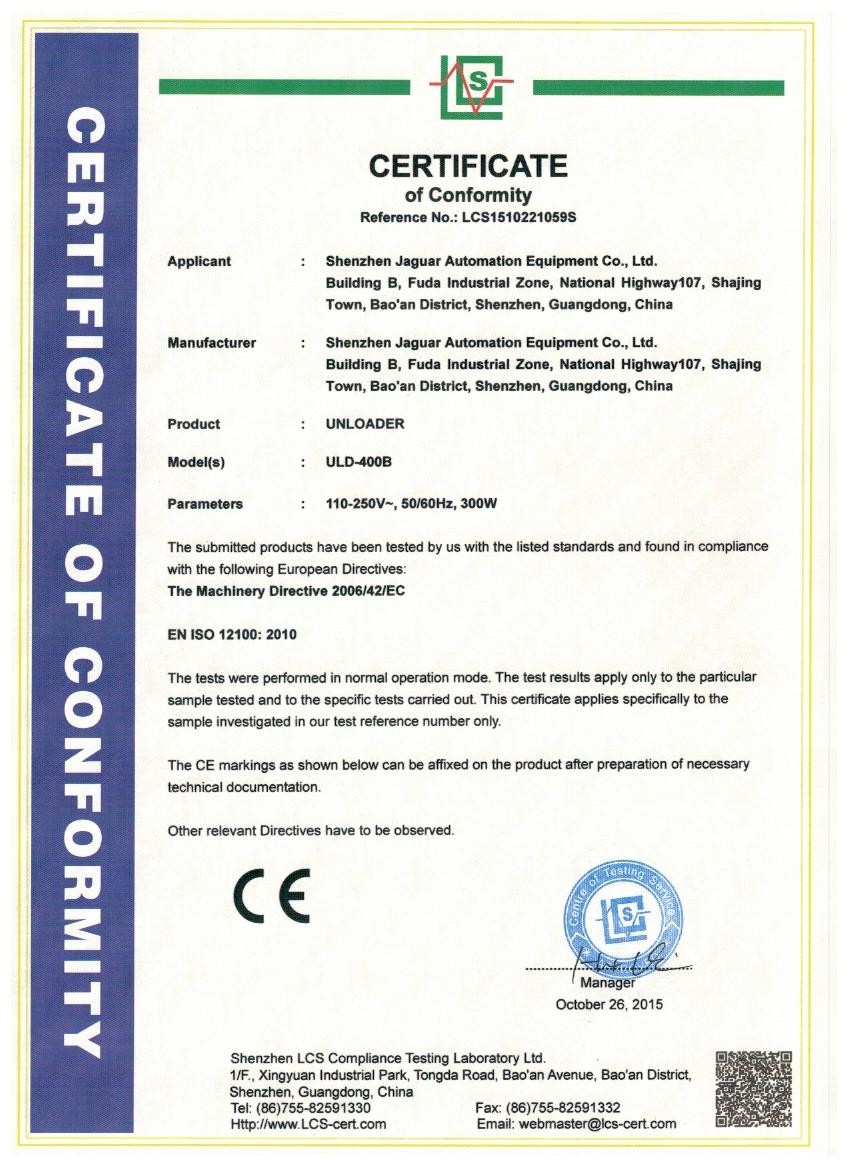

Certifications
