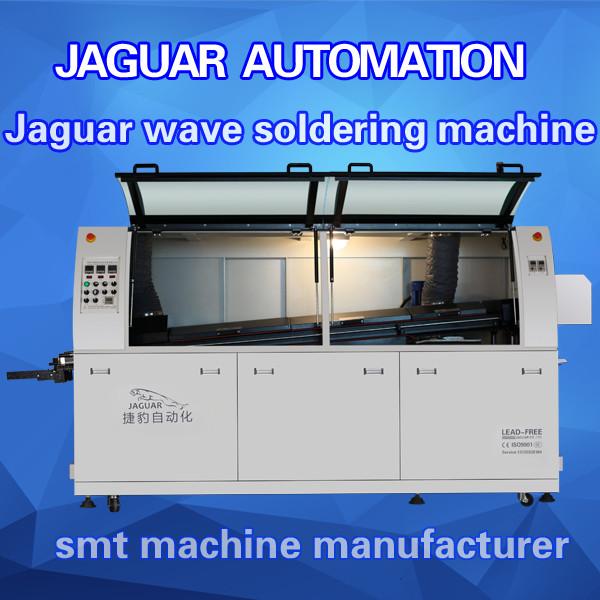

SMT machine /soldering equipment machine/LED SMT wave soldering
machine for PCB / led lamp production line
chain claws The key board
Specification:
| Model No. | JAGUAR N250 |
| Number of heating zones | 2 |
| Length of heating zones | 600mm |
| Body size | 1800(L)*1200(W)*1600(H) |
| Outside dimension | 2600(L)*1200(W)*1600(H) |
| Weight | 700KG |
| Total/running power | 11KW/4-6KW |
| Air supply | 0.5MPa |
| Preheating method | Hot air |
| Preheating power | 220V 5KW |
| Control method | Press key +PLC (Option: touch screen, PC) |
| Range of temp. control | Room temperature---300℃ |
| Preheating time | About 10-15mins for setting 150℃ |
| Solder type | Lead-free / Sn-Pb |
| Solder pot capacity | 220KG |
| Solder pot temperature | 300℃ |
| Solder power | 380V 6KW |
| Solder temp. control method | PID&SSR |
| Wave crest drive power | 500W 220V |
| Warm-up time of solder | About 120mins for setting 250℃ |
| PCB width | 50-250mm |
| Convey speed | 0-1800mm/min |
| Convey direction | L→R (R→L optional) |
| Convey angle | 4—7 º |
| Flux pressure | 3-5 bar |
| Flux capacity | 3.2L |
INTRODUCTION:
1. Automatic conveying power system and auto synchronous board feeding functions.
2.Tin stove peak uses frequency conversing speed adjustment which can
independently control the wave height.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles
and rodless pneumatic cylinders and PLC control, accurate and
reliable.
4.PLC is used to control the machine, to ensure the reliability and
stability of the system.
5.With Remote Infrared Ceramic heating pipe preheating device, heat
radiation directly to the circuit board bottom, fast heating and
stimulate the full activity of flux.
6.Special alloy transportation chain claws, non-stick tin and ensures
the
7.quality of welding PCB board.
8.Tin stove adopts imported high frequency conversion motor
independent control, stable performance.
9.Lead-free solder furnace with independent design, environment
protection and safety, easy to clean.
10.Preheating system uses three independent temperature control so
that ensure the excellent heat preservation, temperature
uniformity, temperature difference no more than ±2ºC.
11.Time can be controlled, we can preset switch functions, tin stove
can heat within 90 minutes.
12.automatic claw cleaning function ensure the cleanliness of claws.
13.Reasonable design and sensitive fault security alarm system ensure
the stable performance and operators’ safety.
