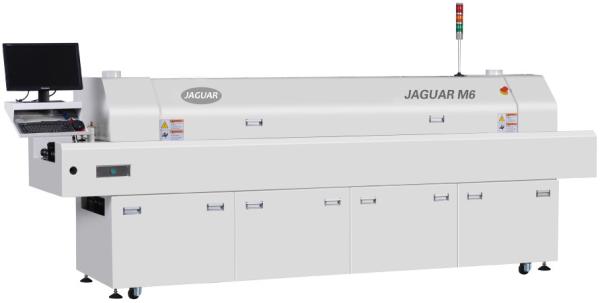

JAGUAR SMALL SIZE REFLOW OVEN WITH COMPUTER AND RAIL
Introduction:
No.1 The unique advanced long life heating system
1.The heating system adopt the Swedish nickel heater with
efficiency and energy-saving. The peak wave length of the radiation
power is 4UM with curved surface reflector to the rising
temperature speed, improve the thermal efficiency. And the special
forced-air circulation system make PCB and the component heated
uniform and eliminate the "shadow effect" completely .
2.Using special high temperature resistant protection system in
heating preservation system and special iron in furnace .
3.Using imported Taiwan SanYue long axis of high temperature fan
motor and W shaped heat pipe, Model design, no noise, shockless and
easy for maintenance .
4.Whole oven are porous aluminum transfer the hot air to guarantee
the hot air evenly to the PCB .the whole top oven fixtures can open
completely so that easy to clean the oven inside .
No.2 Smooth and reliable transmission system
1.The transmission system use STK adjustable speed motor imported
from Taiwan matched with the 1:150 turbine reducer can running
smooth ,speed range can be arrived at 0-1500mm/min.
2. Independent wheel structure support and match stainless belt to
make the running smoothly and the speed precision is up to ±20
mm/min .
3.Special stainless belt: durable and wear-resistant, not easy to
deform and long life.
No.3 Stable and reliable electrical control system
1.It adopts imported thermostat control which owns fuzzy control
and PID intelligent precision control system.It can fast response
the changes in external heat and ensure more temperature balanced
by PID intelligent operation and automatic control heating .
2. Using thermocouple imported from Taiwan by each temperature
zone, it can fast and sensitive induct the changes in each
temperature zone, transfer and control timely, compensate the
temperature balance in each zone .
3 .Special SSR solid state relay matched with dedicated radiator
improve the heat efficiency greatly and prolong the lifetime
effectively. No contact output and fuzzy control function by
thermostat, can monitoring the changes of outside temperature and
calorific value, controlling the heating device by minimum pulse,
ensuring the high precision of the temperature control & the
uniform temperature in internal and the length ,direction,
temperature distribution, all of these meet IPC standards .
4. Power is abundant, heat up fast, it’s only need 20 minutes from
room temperature to constant temperature.
5 .Failure diagnosis and sound light alarm.
6. Delay shutdown production function, uniform cooling after the
shutdown: prevent component deformation.
Specification:
| Model | JAGUAR M6 |
Heating System | Number of heating zones | UP 6/BOTTOM6 |
| Length of heating zones | 2500MM |
| Heating mode | hot air |
| Cooling Mode | Force air |
| Cooling zones | Up 1 bottom 1 |
Conveyor System | Max. Width of PCB | 350mm |
| Mesh belt width | 400mm |
| Transmission Direction | L→R(or R→L) |
| Transmission Net Height | 880±20mm |
| Transmission type | Mesh and chain |
| Range of rail width | 0-300mm |
| Conveyor speed | 0-1500mm/min |
| Auto/manual Lubrication | standard |
| Upper hood method | Manual(option:auto) |
| Fixed rail side | Front rail fixed(option: rear rail fixed) |
| Components high | Top 30mm and bottom 25mm |
Control system | Power supply | 5line 3phase 380V 50/60Hz |
| Total power | 24kw |
| Starting power | 18kw |
| Normal power consumption | 4KW |
| Warming time | About 20 mins |
| Temp. setting range | Room temperature-300℃ |
| Temp. control method | PLC & PC |
| Temp. control precision | ±1℃ |
| Temp. deviation on PCB | ±2℃ |
| Data storage | Process Data and status storage(80GB) |
| Nozzle plate | Aluminum Alloy Plate |
| Abnormal Alarm | Abnormal temperature. (extra-high/extra-low temp.) |
| Board dropped alarm | Tower light: Yellow-warming, Green-normal, Red-abnormal |
General | Dimension(L*W*H) | 3800×1100×1490mm |
| Weight | 900KG |
| Color | Computer gray |
